Details
What goes up, loves coming down

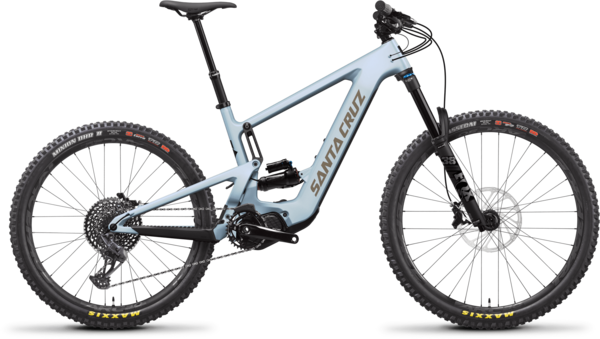

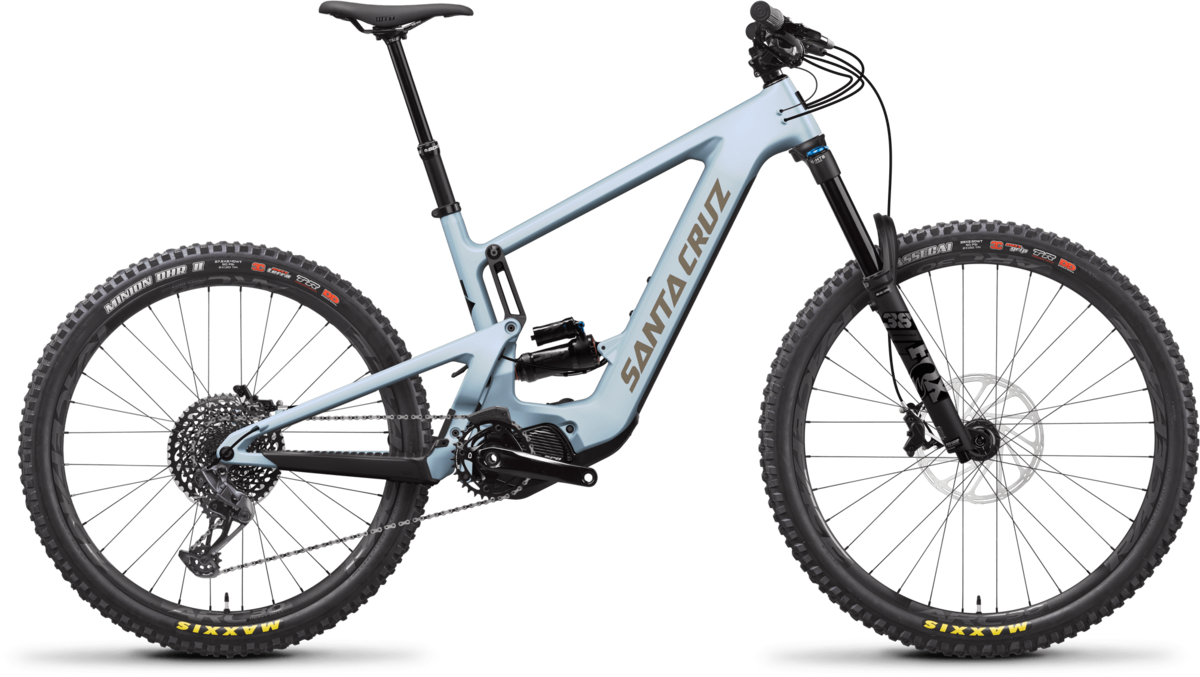

The Bullit is an electric mountain bike designed for tackling the steepest and deepest of trails in both directions. Imagine the kinds of rooty, rocky, horror fests usually reserved for the biggest-hitting bikes. Then imagine what lies beyond that. The Bullit takes a no-limits approach. 170mm travel, a 38mm-diameter fork, and DoubleDown tires reflect the smashability of this platform.
This is a bike for riders who seek downhill bike trails that are out of range of any chairlift or shuttle road.
Design Details:
- Mix of Both Worlds
The mixed wheel configuration of a 29-inch wheel up front provides traction and stability, while the 27.5" rear wheel keeps agility at hand and the chainstay length in check.
- 170mm VPP Travel
170mm travel front and rear, a burly 38mm diameter fork, and DoubleDown tires reflect the smashability of this platform.
- Full CC Carbon Frame
Other bikes in this category rarely adopt carbon because few companies have mastered carbon manufacturing. Our carbon frames are designed in our Carbon Lab in California, made in our own facility by our team, and have a lifetime warranty.
- Santa Cruz Carbon Di2 Bar
There's nothing worse than an untidy cockpit. Our own bar hides the extra cables of the Shimano STEPS system, keeping things clean and hassle-free.
- Shimano STEPS EP8 Motor and 630Wh Battery
More power, less weight, even more efficiency, and the biggest battery Shimano offers.
- Quality, Strength, Reliability
The legendary Santa Cruz fit, finish, and quality construction make this long-range hauler tough enough to handle anything. The frame, linkages, and optional Reserve wheels come with a lifetime warranty.
Frame Size | Medium | Large | X-Large | XX-Large |
---|---|---|---|---|
Reach (mm) | 450 | 475 | 495 | 515 |
Stack (mm) | 621 | 630 | 648 | 670.4 |
Head Tube Angle | 64° | 64° | 64° | 64° |
Seat Tube Length (mm) | 405 | 430 | 460 | 500 |
Front Center (mm) | 789.4 | 818.8 | 847.5 | 878.5 |
BB Height (mm) | 348 | 348 | 348 | 348 |
BB Drop (mm) | 25.5/6.5 | 25.5/6.5 | 25.5/6.5 | 25.5/6.5 |
Wheelbase (mm) | 1238.5 | 1267.9 | 1296.7 | 1327.7 |
Rear Center (mm) | 449 | 449 | 449 | 449 |
Head Tube Length (mm) | 100 | 110 | 130 | 155 |
Top Tube Length (mm) | 591.3 | 619.2 | 644.9 | 672.1 |
Seat Tube Angle | 77.2° | 77.1° | 77° | 76.8° |
Standover Height (mm) | 748 | 747 | 745 | 745 |
Frame Size | Rider Height (in) | Rider Height (cm) |
---|---|---|
Medium | 5'5" - 5'9" | 165 - 175 |
Large | 5'9" - 6'1" | 175 - 185 |
X-Large | 6'1" - 6'4" | 185 - 193 |
XX-Large | 6'4" - 6'7" | 193 - 201 |
Specs
Frame | Carbon CC |
---|---|
Fork | FOX 38 Float Performance, 170mm |
Rear Shock | RockShox Super Deluxe Select+ 230x62.5 |
Rims |
Front: RaceFace ARC HD 30 29" Rear: RaceFace ARC HD 30 27.5" |
Hubs |
Front: DT Swiss 370, 15x110, 32h Rear: DT Swiss 370, 12x148, XD, 32h |
Tires |
Front: Maxxis Assegai 29"x2.5", 3C MaxxGrip, Double Down, TR Rear: Maxxis Minion DHR II 27.5"x2.4", 3C MaxxTerra, Double Down, TR |
Crankset | Shimano EM600 Crank Arms 165mm |
Shifters | SRAM GX Eagle Single Click, 12spd |
Rear Derailleur | SRAM GX Eagle, 12spd |
Cassette/Freewheel | SRAM XG1275 Eagle, 12spd, 10-50t |
Chain | SRAM GX Eagle, 12spd |
Brakes | SRAM Code R |
Rotors |
Front: Avid Centerline, 220mm Rear: Avid Centerline, 200mm |
Handlebars | Santa Cruz e35 Carbon Bar, 800mm |
Tape/Grips | Santa Cruz Bicycles House Grips |
Stem | Burgtec Enduro MK3, 42mm |
Headset | Cane Creek 40 IS Integrated Headset |
Seatpost | SDG Tellis Dropper, 31.6 |
Saddle | WTB Silverado Medium CroMo |
Pedals | Sold Separately |
Accessories & Extras | Chainguide: E13 E-Spec+ AL |
Motor | Shimano Drive Unit DU-EP800 |
Battery | Shimano 630Wh Integrated |
* Subject to change without notice.
Part Numbers
Option | UPC | MPN | Store SKU |
---|---|---|---|
Duke Blue / Medium | 192219282480 | 58-23234-148-3-790-948201-01 | 210000012272 |
Duke Blue / X-Large | 192219282923 | 58-23234-148-5-790-948201-01 | |
Duke Blue / XX-Large | 192219283142 | 58-23234-148-6-790-948201-01 | |
Hunter Green / Medium | 192219282374 | 58-23234-148-3-789-948201-01 | |
Hunter Green / Large | 192219282596 | 58-23234-148-4-789-948201-01 | |
Hunter Green / X-Large | 192219282817 | 58-23234-148-5-789-948201-01 | |
Hunter Green / XX-Large | 192219283036 | 58-23234-148-6-789-948201-01 |
